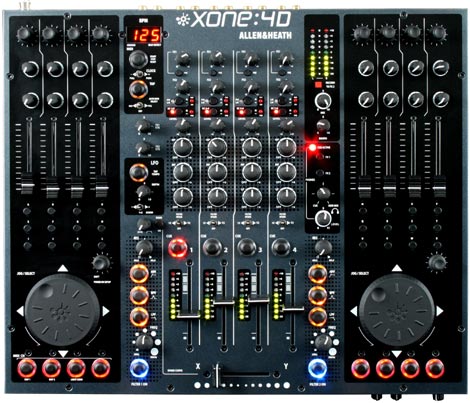

Allen & Heath Xone:4D

Allen & Heath - Xone:4D

Artnr: IDS0006167

Leveranstid: Tillfälligt slut. Kontakta oss för leveranstid här »

11995 kr/st

The Xone:4D continues the seamless integration of computer-based digital media into the traditional DJ workspace, but with a further enhanced feature set. Combining a fully featured, high specification professional analogue DJ mixer with 105 MIDI controllers and 227 MIDI messages, a completely new, high-end, 96 kHz / 24-bit 20 channel Allen & Heath-designed USB 2.0 soundcard, the progressive XONE:4D has been developed in conjunction with some of the world’s most cutting-edge DJ/producers. New features for the 4D include the new 20-channel USB 2.0 soundcard, a completely new BPM counter, assignable LFO with step VCF-filter and fresh new paint.

Mixer:
• 4 multi-input stereo channels: RIAA preamps for turntables on 3 inputs, (channel 4 is Line/Line)
• Soundcard output routing switches for each channel (1-2, 3-4, 5-6 & 7-8)
• 3-band total kill EQ: 6dB to off
• 2 FX sends: pre/post selection (internal on FX2)
• 2 stereo returns
• Headphone monitor with mix/cue control: 3.5mm and ¼” sockets
• 2 analogue VCF filters low-pass, band-pass, high-pass (can be combined for more filter types), resonance frequency, and filter ‘on’ switch
• Filter assignable LFO with depth control and brand-new editable fader step-filter function.
• Completely re-designed and functionally improved BPM detection circuit.
• Mic input: On XLR connector; gain control and 2-band EQ control available: routable straight to soundcard.
• Power supply: High performance internal switch-mode supply
• RIAA: for THREE turntables (four via internal jumper link)
• Dual Rail VCA Cross Fader

USB 2.0 SOUNDCARD:
• Totally new 20 channel 96 kHz / 24-bit soundcard connecting via wide-bandwidth USB 2.0 (480Mbit/s)
• Uses 24 bit stereo Analogue to Digital converters and Digital to Analogue converters (not lower spec CODECs)
• 10 in / 10 out (4 stereo in + optical in / 4 stereo out + optical out)
• No software configuration utility – all front panel switched.
• Soundcard inputs fed from Mic, FX2, FX1, Main Mix or from stereo channels 1-4
• Sends - mix, FX, or individual analogue channels may be routed to PC or digital outputs.
• New record output – FX2 RCA outputs can be switched to a RCA record output.
• Drivers available for PC and Mac

MIDI CONTROLLER:
• NEW! 2 separate layers of MIDI controllers with control pickup algorithm ensuring a smooth transition between layers.
• 227 MIDI control messages available from 105 separate MIDI controls
• 8 x 60mm linear faders
• 16 x detented rotary pots
• 10 rotary encoders,
• 50 switches,
• 2 custom jog wheels with 4 micro switches
• 8 illuminated push switches
• Xone:4D is compatible with any PC software that has MIDI assignable functions: for instance, lighting controller or visual effects programs
