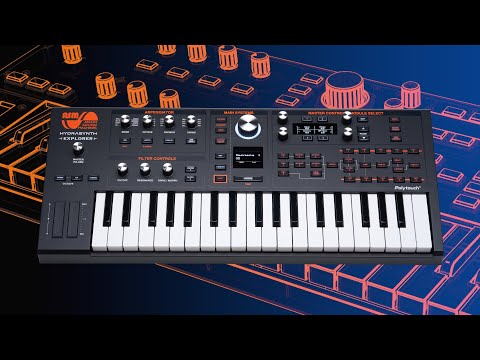

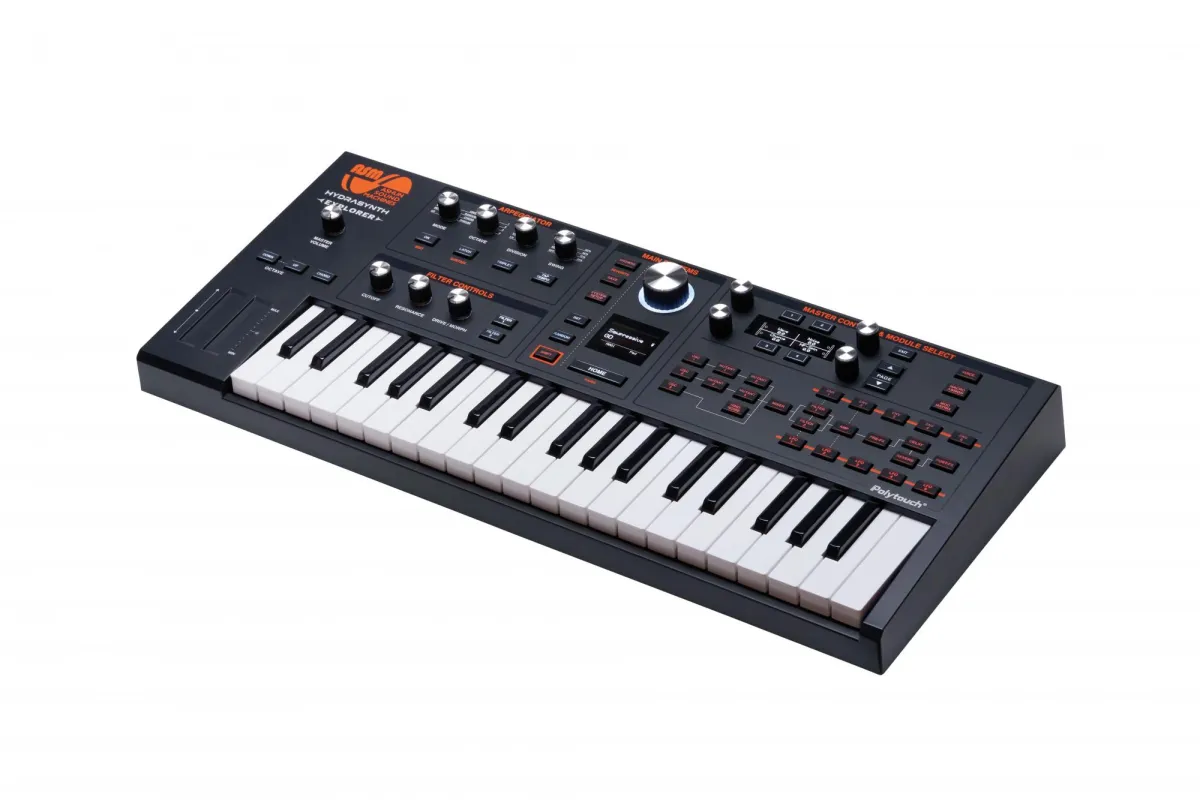

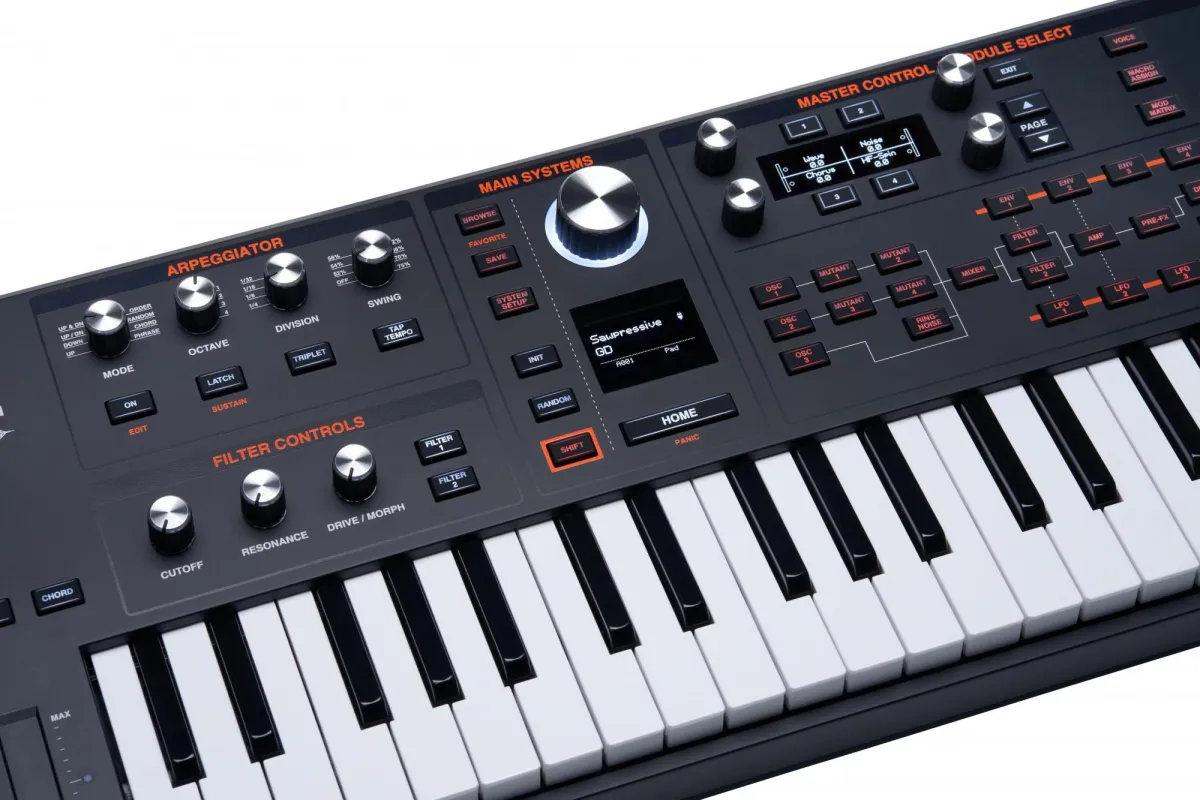

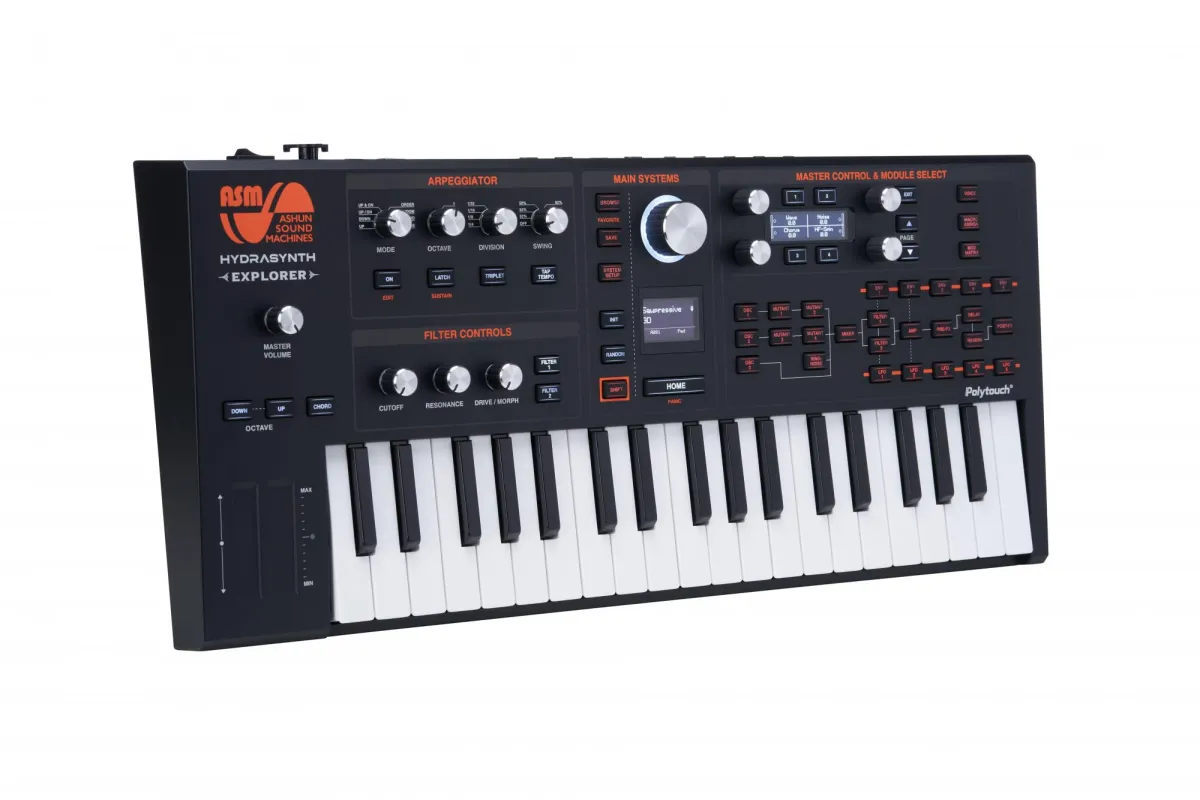

ASM Hydrasynth Explorer
ASM Hydrasynth Explorer tar den nu legendariska Hydrasynth till nya territorier. Hydrasynth Explorer erbjuder samma 8-röst ljudmotor som Hydrasynth Keyboard och Desktop, men i en kompakt och
bärbar batteridriven formfaktor. Den mellanstora PolyTouch®-tangentbädden med 37 toner har polyfonisk aftertouch, som erbjuder fantastisk spelbarhet och uttryck men i ett reducerat fotavtryck. Den extremt djupa men lättanvända ljudmotorn har de berömda WaveScan-oscillatorerna, Mutator-vågformning, flexibel dubbel filtersektion, 32-slots moduleringsmatris,
och dubbla Insert- och Dual Master-effekter som tillåter en livstid av soniska utforskningar. CV/GATE-utgångarna ger enkel integration med utrustning som modulära synthesizers och USB MIDI och fullstora
MIDI DIN-kontakter tar hand om standardanslutning utan behov av speciella kablar. ASM Hydrasynth Explorer kan också drivas med 8xAA-batterier för äkta mobil användning när du är på språng. Enkelt uttryckt är det här
en mycket kraftfull kompakt synthesizer och kontroller allt-i-ett för den moderna musikern.
Utforskarens höjdpunkter:
ASM Hydrasynth Explorer Wave Morphing Synthesizer funktioner
8-stämmig polyfonisk digital wave morphing synthesizer
POLYTOUCH™ Polyphonic Aftertouch, Note on/off velocity keyboard med 37 medelstora tangenter
Batteridriven drift med 8xAA-batterier (ingår ej)
MPE (MIDI Polyphonic Expression) kompatibel
Stöd för mikrotuning via MIDI Tuning Standard-filer
3 oscillatorer per röst med totalt 4 mutatorer
1 Multimode-filter och 1 variabelt LP-BP/Notch-HP-filter per röst
640 programplatser med Kategorisökning
CV/Gate sammankoppling
Tekniska specifikationer
Typ: Polyphonic Wave Morphing Synthesizer
Ljudmotortyp(er): Wavescan
Analog/Digital: Digital
Antal nycklar: 37 medelstora nycklar
Typ av tangenter: ASM POLYTOUCH™ polyfoniskt Aftertouch-tangentbord, på/av hastighetskänsligt
Andra kontroller: Pitch Bend, Mod Wheel
Polyfoni: 8 röster
Antal förinställningar: 640
Oscillatorer: 3 x Wavescan-oscillatorer (219 vågformer), 4 x Mutator-vågformare (8 typer), brus (7 typer)
Mutatorer: 8 typer (FM-Lin, WaveStack, PW-Orig, PW-Squeeze, PW-ASM, Harmonic Sweep, Hard Sync, PhazDiff)
Ljud: 7 typer (vit, rosa, brun, röd, blå, violett, grå)
LFO: 5 per röst (Sinus, Triangel, Saw Up, Saw Down, Square, Pulse27%, Pulse13%, S&H, Noise, Random, Step), Tempo syncable, Semitone Lock
Kuvert: 5 per röst, Tempo syncable, Variable triggerkällor
Filtertyper: 1 multimodefilter (16 typer) och 1 variabelt LP-BP/Notch-HP-filter, serie eller parallell routing
Filter: Filter 1 (LP Ldr12, LP Ldr24, LP Fat12, LP Fat24, LP Gate, LP MS20, HP MS20, LP 3-Ler, BP 3-Ler, HP 3-Ler, LP Stn12, BP Stn12, HP Stn12, LP 1 pol, LP 8 pol, vokal), filter 2 (LP-BP-HP, LP-Notch-HP)
Effekter: 9 infogningseffekter, 5 fördröjningar, 4 reverb.
Effekttyper: Chorus, Flanger, Rotary, Phaser, Lo-Fi, Tremolo, EQ, Kompressor, Distortion, Delay, Reverb
Arpeggiator: 8 typer (upp, ner, upp&ner, upp/ner, ordning, slumpmässig, ackord, fras)
Övrigt: Mod Matrix (32 platser), Macro Controllers (8), Favoriter (32), Randomizer (Patch och modul), MPE-kompatibilitet, Varmt läge, Microtuning
Ljudutgångar: 2 x 1/4" balanserad (L/Mono, R)
Hörlurar: 1 x 1/4"
USB: 1 x typ B
MIDI I/O: In/Out
Pedalingång: 1 x 1/4" (hållbar)
Andra utgångar: 5 x 1/8" utgångar (CV, Gate, Mod1, Mod2, Clock)
Strömförsörjning: 12V DC omkopplingsbar strömförsörjning
Höjd: 2,28" / 5,8 cm
Bredd: 21,81" / 55,4cm
Djup: 9,72" / 24,7 cm
Vikt: 7,63 lbs / 3,46 kg
MPN: HSMK
ASM Hydrasynth Explorer
The ASM Hydrasynth Explorer takes the now legendary Hydrasynth into new territories. The Hydrasynth Explorer offers the same 8-voice sound engine as the Hydrasynth Keyboard and Desktop, but in a compact and
portable battery powered form factor. The 37-note mid-sized PolyTouch® keybed features polyphonic aftertouch, offering great playability and expression but in a reduced footprint. The extremely deep yet easy to use sound engine features the famous WaveScan oscillators, Mutator waveshaping, flexible dual Filter section, 32-slot modulation matrix,
and dual Insert and dual Master effects allowing a lifetime of sonic explorations. The CV/GATE outputs provides for easy integration with equipment such as modular synthesizers and the USB MIDI and full-sized
MIDI DIN connectors takes care of standard connectivity without the need for special cables. The ASM Hydrasynth Explorer can also be powered by 8xAA batteries for true on-the-go mobile operation. Simply put, this is
one very powerful compact-sized synthesizer and controller all-in-one for the modern musician.
Explorer Highlights:
ASM Hydrasynth Explorer Wave Morphing Synthesizer Features
8-voice polyphonic digital wave morphing synthesizer
POLYTOUCH™ Polyphonic Aftertouch, Note on/off velocity keyboard with 37 mid-sized keys
Battery powered operation using 8xAA batteries (not included)
MPE (MIDI Polyphonic Expression) compatible
Microtuning support via MIDI Tuning Standard files
3 Oscillators per voice with 4 Mutators total
1 Multimode filter and 1 variable LP-BP/Notch-HP filter per voice
640 program locations with Category search
CV/Gate interconnectivity
Tech Specs
Type: Polyphonic Wave Morphing Synthesizer
Sound Engine Type(s): Wavescan
Analog/Digital: Digital
Number of Keys: 37 mid-sized keys
Type of Keys: ASM POLYTOUCH™ Polyphonic Aftertouch Keyboard, On/Off Velocity-sensitive
Other Controllers: Pitch Bend, Mod Wheel
Polyphony: 8 voices
Number of Presets: 640
Oscillators: 3 x Wavescan oscillators (219 Waveforms), 4 x Mutator wave shapers (8 Types), Noise (7 Types)
Mutators: 8 Types (FM-Lin, WaveStack, PW-Orig, PW-Squeeze, PW-ASM, Harmonic Sweep, Hard Sync, PhazDiff)
Noise: 7 Types (White, Pink, Brown, Red, Blue, Violet, Grey)
LFO: 5 per Voice (Sine, Triangle, Saw Up, Saw Down, Square, Pulse27%, Pulse13%, S&H, Noise, Random, Step), Tempo syncable, Semitone Lock
Envelopes: 5 per voice, Tempo syncable, Variable trigger sources
Filter Types: 1 Multimode Filter (16 types) and 1 Variable LP-BP/Notch-HP filter, series or parallel routing
Filters: Filter 1 (LP Ldr12, LP Ldr24, LP Fat12, LP Fat24, LP Gate, LP MS20, HP MS20, LP 3-Ler, BP 3-Ler, HP 3-Ler, LP Stn12, BP Stn12, HP Stn12, LP 1 Pole, LP 8 Pole, Vowel), Filter 2 (LP-BP-HP, LP-Notch-HP)
Effects: 9 Insert Effects, 5 Delays, 4 Reverbs.
Effects Types: Chorus, Flanger, Rotary, Phaser, Lo-Fi, Tremolo, EQ, Compressor, Distortion, Delay, Reverb
Arpeggiator: 8 types (Up, Down, Up&Down, Up/Down, Order, Random, Chord, Phrase)
Other: Mod Matrix (32 slots), Macro Controllers (8), Favorites (32), Randomizer (Patch and Module), MPE Compatibility, Warm Mode, Microtuning

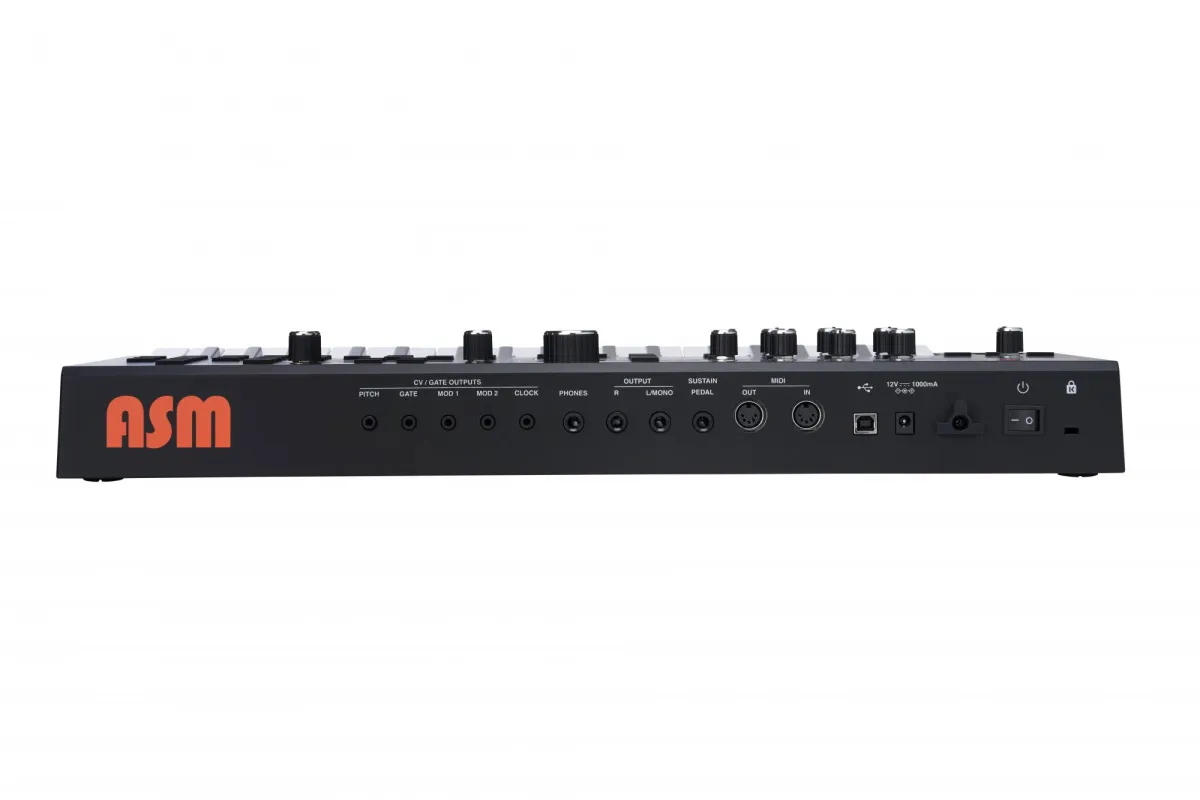

Audio Outputs: 2 x 1/4" Balanced (L/Mono, R)
Headphones: 1 x 1/4"
USB: 1 x Type B
MIDI I/O: In/Out
Pedal Inputs: 1 x 1/4" (sustain)
Other Outputs: 5 x 1/8" Outputs (CV, Gate, Mod1, Mod2, Clock)
Power Supply: 12V DC switchable power supply
Height: 2.28" / 5.8cm
Width: 21.81" / 55.4cm
Depth: 9.72" / 24.7cm
Weight: 7.63lbs / 3.46kg
MPN: HSMK
