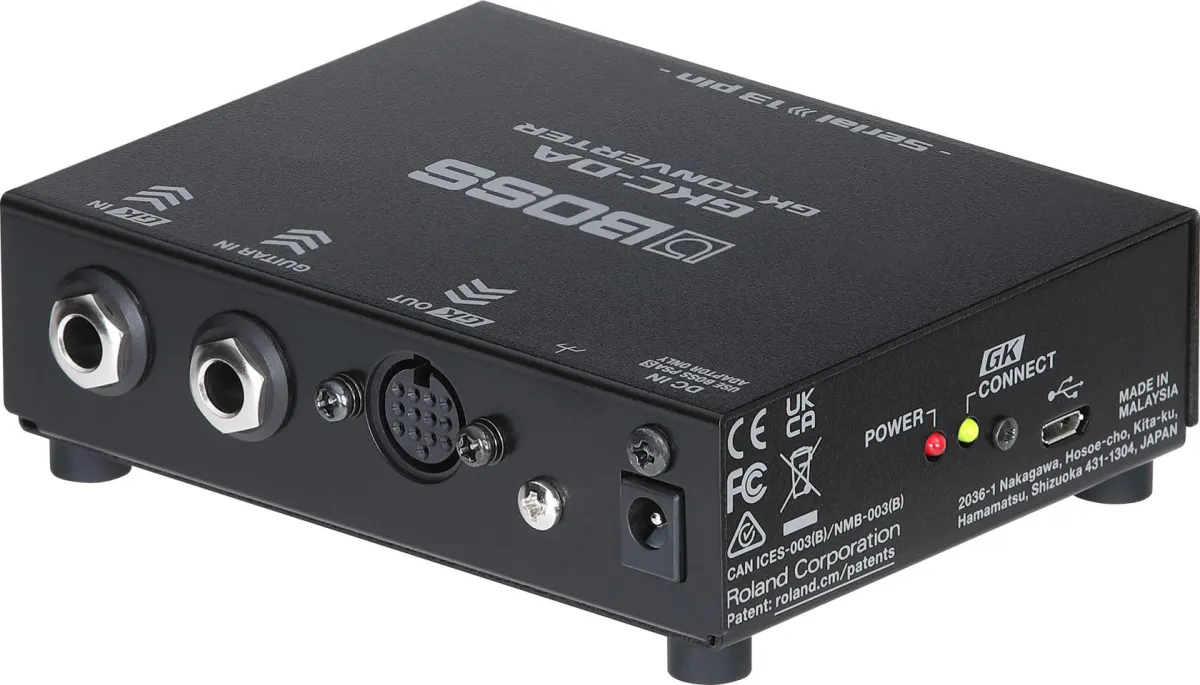

BOSS GKC-DA

Drive BOSS and Roland 13-Pin GK Devices from the Next-Generation Serial GK Interface
The latest BOSS guitar synthesizer products feature the Serial GK digital interface, a newly developed connection method that delivers evolved performance over the analog 13-pin GK interface used in earlier BOSS and Roland guitar synth and modeling products. The GKC-DA GK Converter allows you to drive a 13-pin GK device such as the BOSS SY-1000 or GP-10 using the Serial GK output on a GK-5 or GK-5B Divided Pickup or the GM-800 Guitar Synthesizer.

Standard Features
Converts the Serial GK digital interface to the classic 13-pin analog GK interface
Serial GK input and 13-pin GK output
Instrument input for passing normal guitar/bass pickup sounds to the 13-pin output
Compact and rugged metal design

Supported Products
The GKC-DA allows you to use the following 13-pin GK products with Serial GK devices:

BOSS Products
SY-1000 Guitar Synthesizer
GP-10 Guitar Processor

Roland Products
GR-55 Guitar Synthesizer and other legacy products with a 13-pin GK input

SPECIFICATIONS

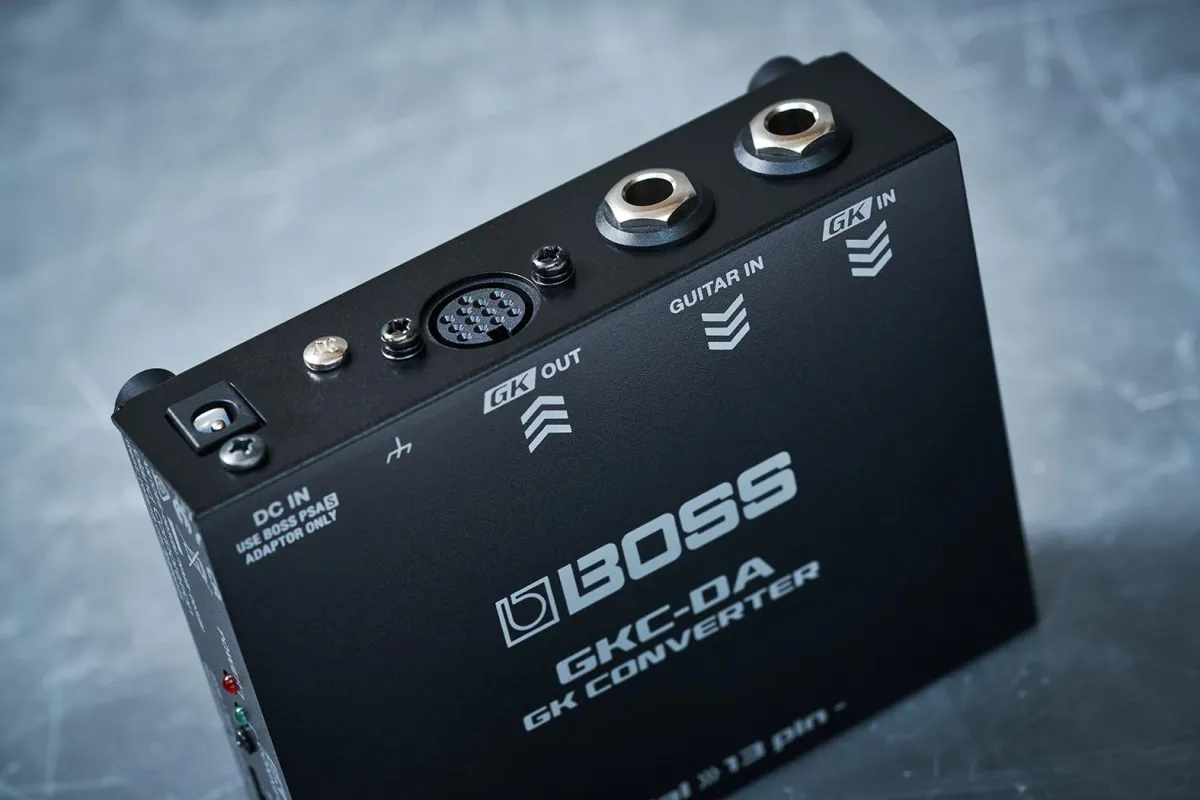

ConnectorGK IN jack: 1/4-inch TRS phone type (for BGK cable only)
GK OUT connector: 13 pins DIN type
GUITAR IN jack: 1/4-inch phone type
DC IN jack

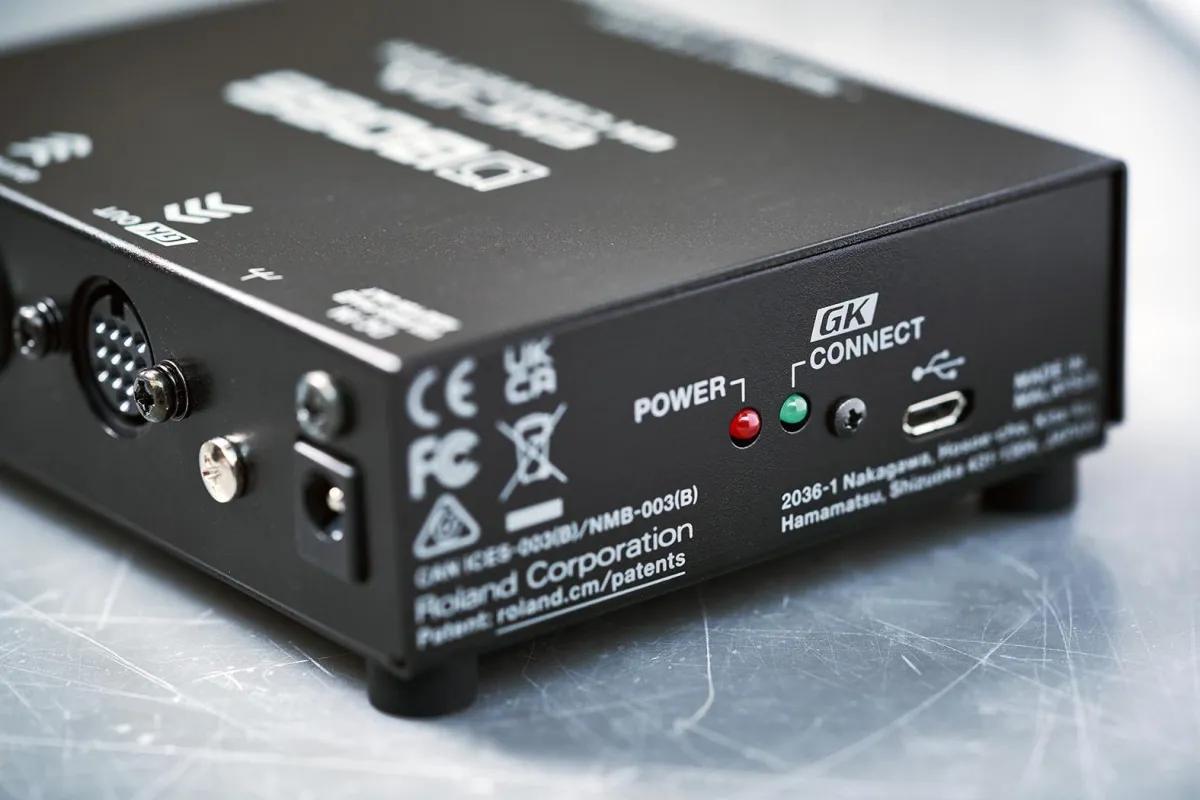

USB port: USB Micro-B (program update only)Nominal Input LevelGUITAR IN: -10 dBuMaximum Input LevelGUITAR IN: +16 dBuInput ImpedanceGUITAR IN: 1 M ohmIndicatorsPOWER indicator
GK CONNECT indicatorCurrent Draw390 mAPower SupplyAC adaptorAccessoriesAC adaptor
Owner’s Manual
Leaflet “USING THE UNIT SAFELY“Options (sold separately)Serial GK cable: BGK-15 (15 ft./4.5 m), BGK-30 (30 ft./9 m)SIZE AND WEIGHTWidth115 mm
4-17/32 inchesDepth92 mm
3-5/8 inchesHeight36 mm
1-7/16 inchesWeight340 g
12 oz
