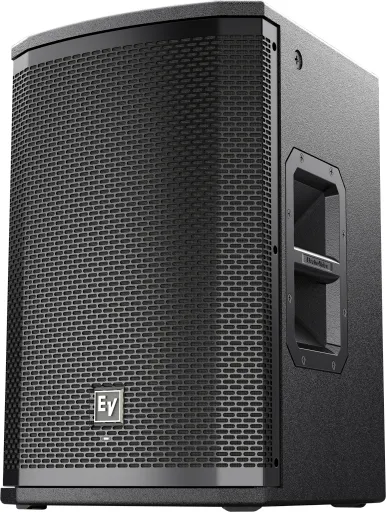

Electro Voice ETX-10P

Visa orginaltexten

10-tums LF SMX bashögtalare
1,25-tums HF titan kompressionsdrivrutin
2000 W Klass-D effektförstärkare med integrerad FIR-Drive DSP
134 dB topp SPL

Frekvenssvar (-3 dB) 85 Hz - 20 kHz¹
Frekvensområde (-10 dB) 65 Hz - 20 kHz¹
Maximal SPL 134 dB peak²

Täckning (H x V) 90° x 60°
Effekt 2000 W
LF Transducer SMX2100 254 mm (10 tum)
HF Transducer DH3-B 1,25-tums kompressionsdrivrutin i titan
Delningsfrekvens 1700 Hz
Kontakter (2) XLR/TRS combo-jack och (1) XLR-länkutgång
Kapsling 18 mm, 13-lagers björkplywood med EVCoat
Galler 16AWG stål med pulverlack

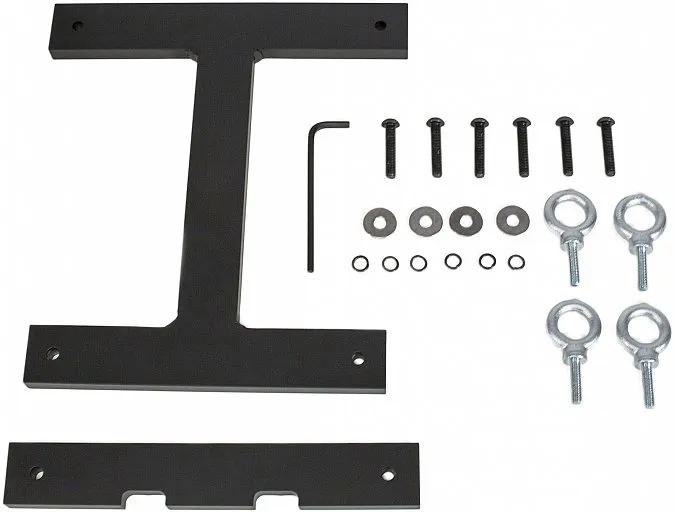

Upphängning (8) M10 upphängningspunkter
Mått (H x B x D) 526 mm x 330 mm x 365 mm (21 tum x 13 tum x 14 tum)
Nettovikt 20,3 kg (44,8 lb)
Fraktvikt 22,9 kg (50,5 lb)
Strömförbrukning 100 - 240 V~, 50 - 60 Hz, 1,6 - 0,8 A³

Visa översättning

10-inch LF SMX woofer
1.25-inch HF titanium compression driver
2000 W Class-D power amplifier with integrated FIR-Drive DSP
134 dB peak SPL

Frequency Response (-3 dB) 85 Hz - 20 kHz¹
Frequency Range (-10 dB) 65 Hz - 20 kHz¹
Maximum SPL 134 dB peak²

Coverage (H x V) 90° x 60°
Power Rating 2000 W
LF Transducer SMX2100 254 mm (10 in)
HF Transducer DH3-B 1.25-in titanium compression driver
Crossover Frequency 1700 Hz
Connectors (2) XLR/TRS combo jack and (1) XLR link output
Enclosure 18 mm, 13-ply birch plywood with EVCoat
Grille 16AWG steel with powdercoat
Suspension (8) M10 suspension points
Dimensions (H x W x D) 526 mm x 330 mm x 365 mm (21 in x 13 in x 14 in)
Net Weight 20.3 kg (44.8 lb)
Shipping Weight 22.9 kg (50.5 lb)
Power Consumption 100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A³
