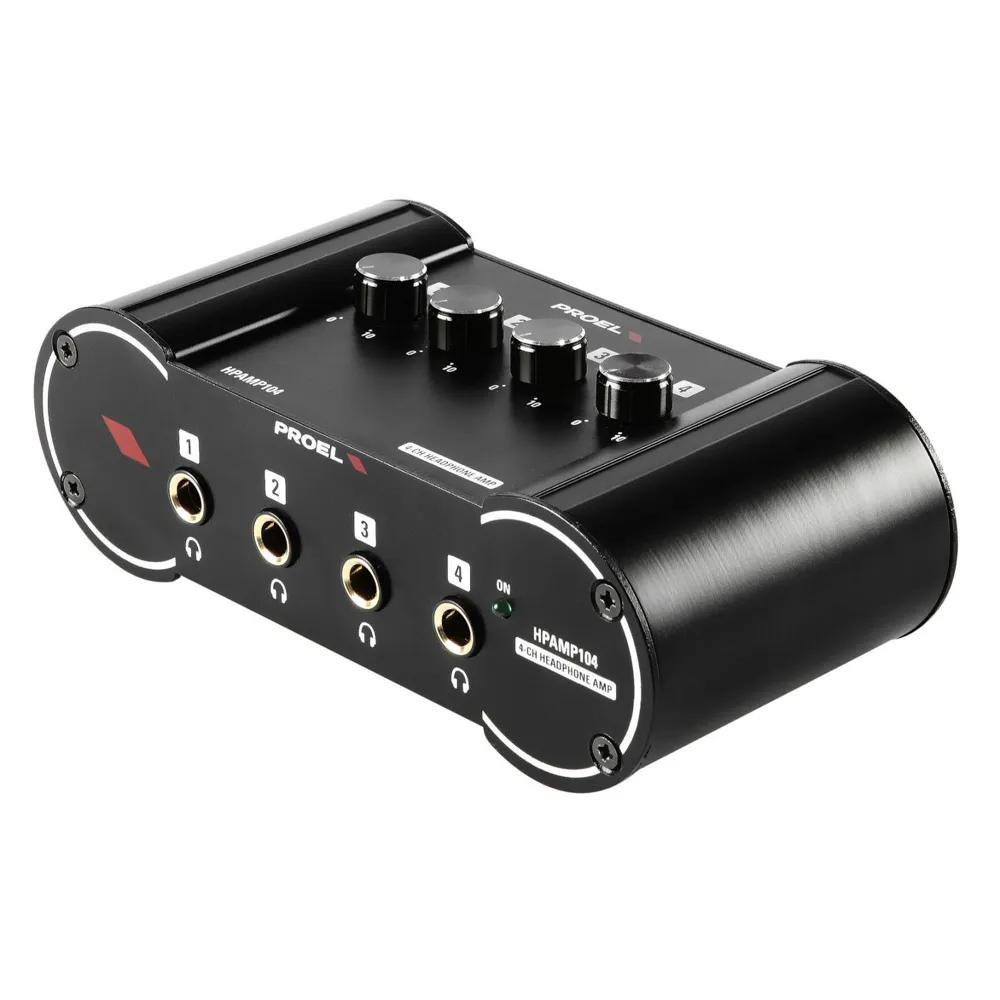

Proel HPAMP104

The 100 Series is a range of D.I. Boxes and Headphone Amps designed to complement audio systems in stage applications, recording studios and fixed installations. Hosted in a stylish extruded and stackable aluminum shell or in a sturdy metal chassis, the 100 Series products are meant to deliver sound quality, versatility and stage-proof reliability in a very affordable package.

Very compact and portable package

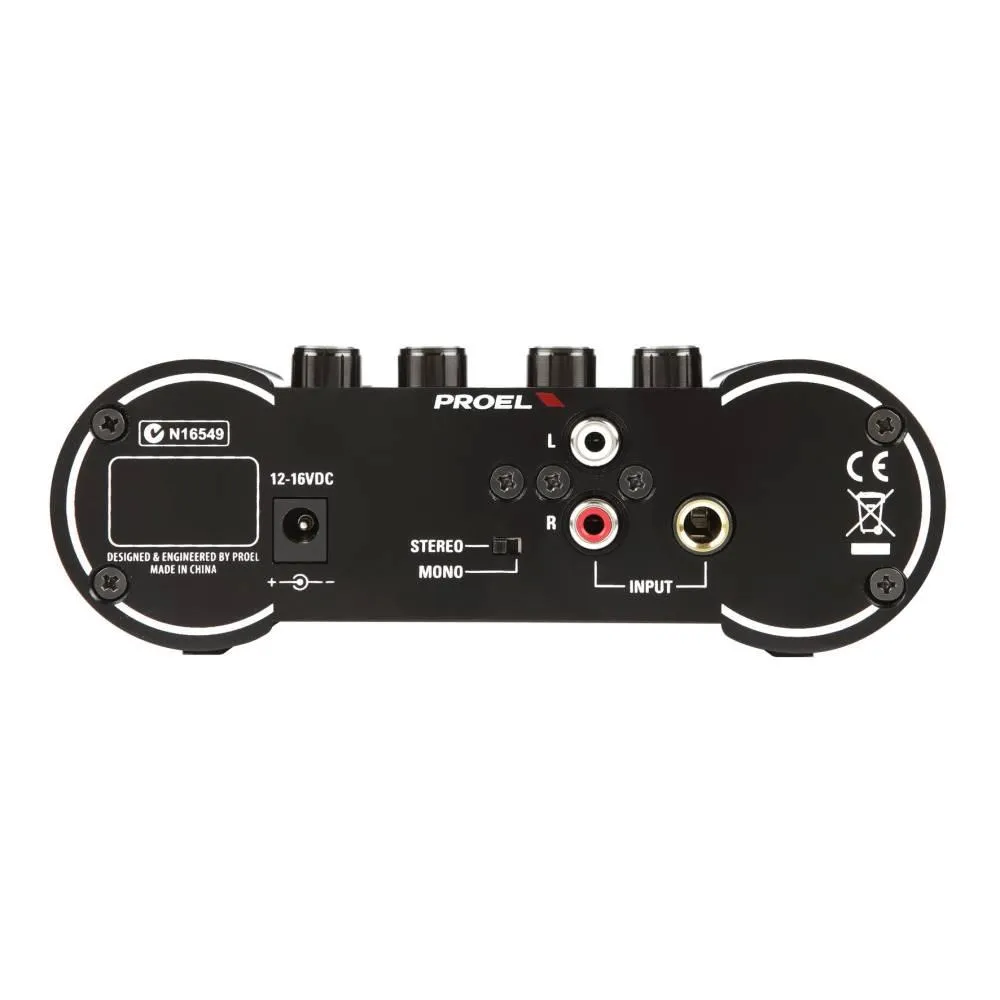

¼” JACK + RCA stereo/mono input
4 x ¼” JACK stereo headphone outputs with individual level controls
+22dB max output level (per channel)
10 ohm minimum output impedance (per channel)
Powered by DC adaptor (included)

Input Section
Inputs 1 stereo
Input Impedance 500 Kohm
Max Input Level +15 dBu
Connectors 1/4" jack stereo, 2 x RCA
Output Section
Outputs 4 stereo
Maximum output (2x) 45mW @ 100 ohm (each)
Load Impedance minimum 16 ohm per channel
Max gain +20 dB each channel
Connector 1/4" jack stereo (each output)
System Performance
Distortion (THD) 0.02 %
Noise < -98 dBu unweighted
Frequency Response 20 Hz - 20 KHz (-3 dB)
General
Controls OUTPUT LEVEL, INPUT STEREO/MONO
Indicators Power ON
Power supply 12-18 VDC (adapter included)
Dimensions (W x H x D) 152 x 50 x 72 mm
Weight 0,8 Kg
