Artnr: IDS0125339
Lagerstatus / Leverans
35413 kr/st

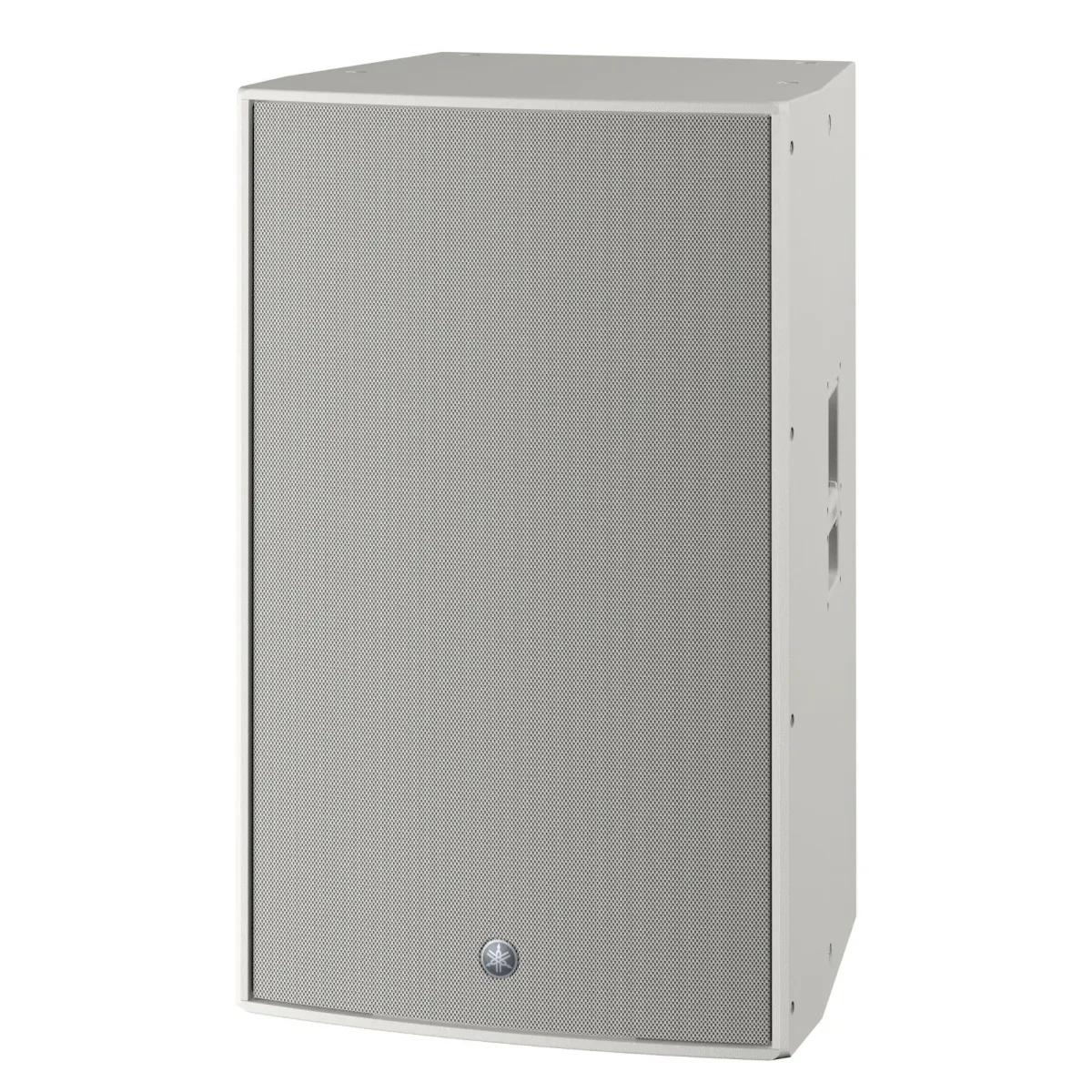

The DZR315-D is 3-way bi-amped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction—the DZR315 delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. Ideal for use in a front of house main PA, it also includes integrated M10 rigging points for suspended applications.
Features
3-way powered loudspeaker with a 2” HF, an 8 ” MF and a 15" LF
Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
High power 2000W Class-D amplifier module
96kHz DSP and FIR filter for true high-resolution sound with super low latency
Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
D-Contour and highly reliable protection circuits
Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
Technical Data
Speaker type: 3-way, Bi-amped Powered Speaker, Bass-reflex
Frequency range (-10dB): 31Hz - 20kHz
Coverage area (H x V): 75° x 50°
Components (LF): 15" Cone, 3" Voice Coil, Neodymium magnet
Components (MF): 8" Cone, 1.5" Voice Coil, Ferrite magnet
Components (HF): 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover: 1.7kHz (FIR-X)
Sampling frequency rate Internal: 96kHz and FIR Filter
A/D D/A Converters: 96kHz AD/DA
Maximum output level (1m; on axis): 143dB SPL
Power rating (Dynamic): 2000W (LF: 1000W, MF/HF: 1000W)
Power rating (Burst (20ms)): 1100W (LF: 1000W, MF/HF: 100W)
Power rating (Continuous): 950W (LF: 850W, MF/HF: 100W)

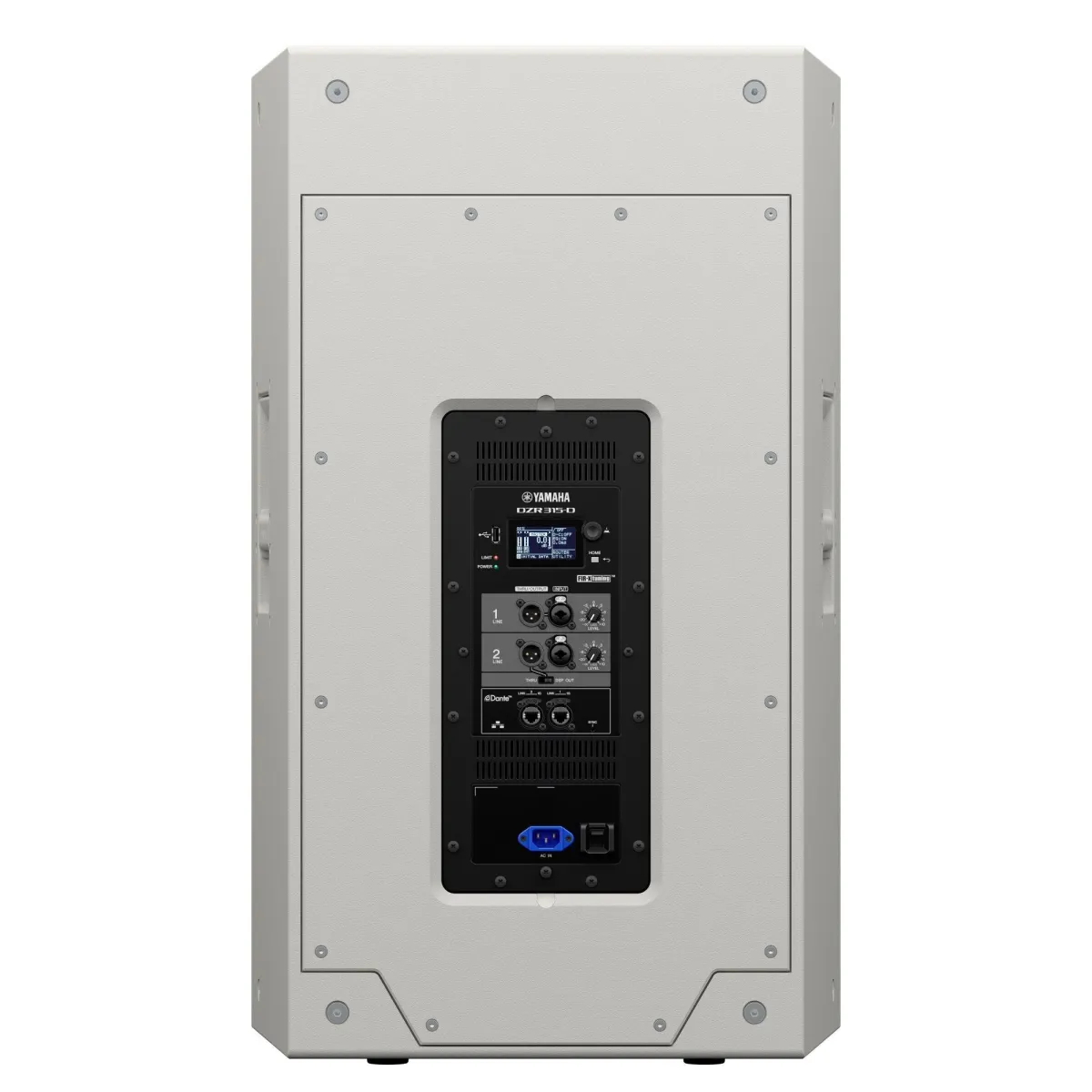

I/O Connectors Analog: Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
Digital I/O: Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
I/O Connectos Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
AC connector:: IEC AC inlet x1 (V-Lock)
Amplifier class: Class-D
Cooling: Fan cooling, Variable speeds
Power consumption: 45W (Idle), 150W (1/8)
Handle: Aluminium die-cast, Side x2
Rigging: M10 x16
Dimensions (WxDxH): 550 x 520 x 897 mm
Weight: 41,6 kg
