Yamaha HS5

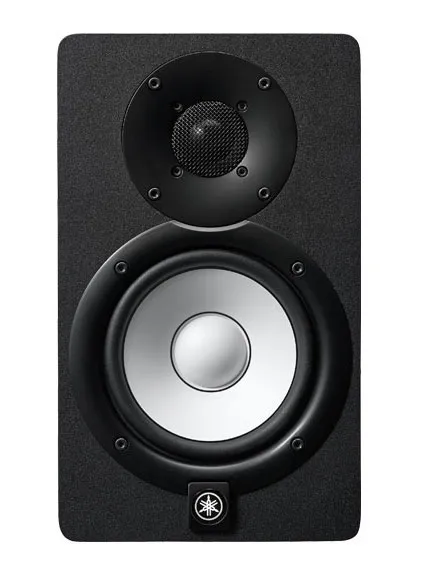

2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter.

- 2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter
- 54Hz - 30kHz frequency response
- 45W LF plus 25W HF bi-amp system for high-performance 70W power amplification

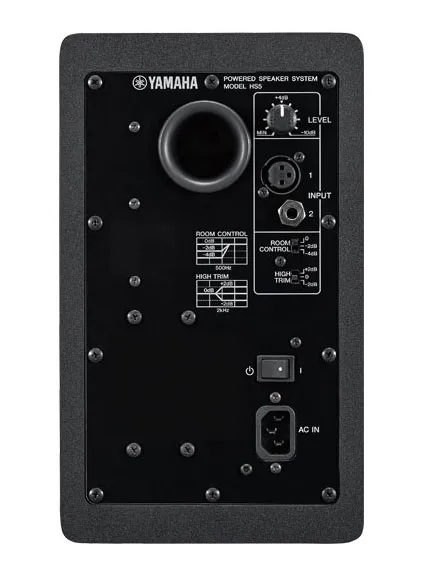

- ROOM CONTROL and HIGH TRIM response controls
- XLR and TRS phone jack inputs accept balanced or unbalanced signals

Speaker type: 2-way bi-amp powered studio monitor
Frequency Range (-10dB): 54Hz - 30kHz
Components: LF: 5" cone, HF: 1" dome
Crossover: 2kHz
Output power: 70W (LF:45W, HF:25W)
I/O connectors: XLR3-31 type (balanced), PHONE (balanced)
Power consumption: 45W
Shape: Bass-reflex type
Cabinet material: MDF
Dimensions: W: 170mm, :H: 285mm, D: 222mm
Net weight: 5.3kg
Others: LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz)
